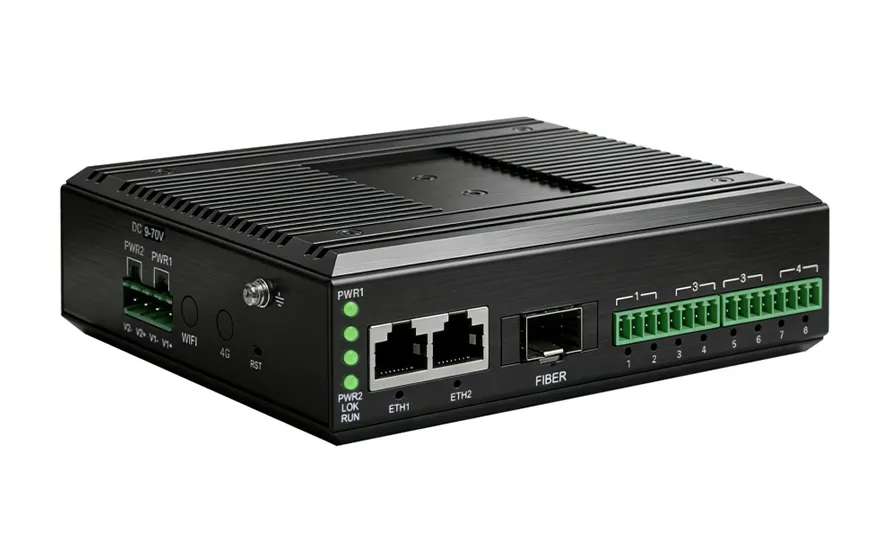

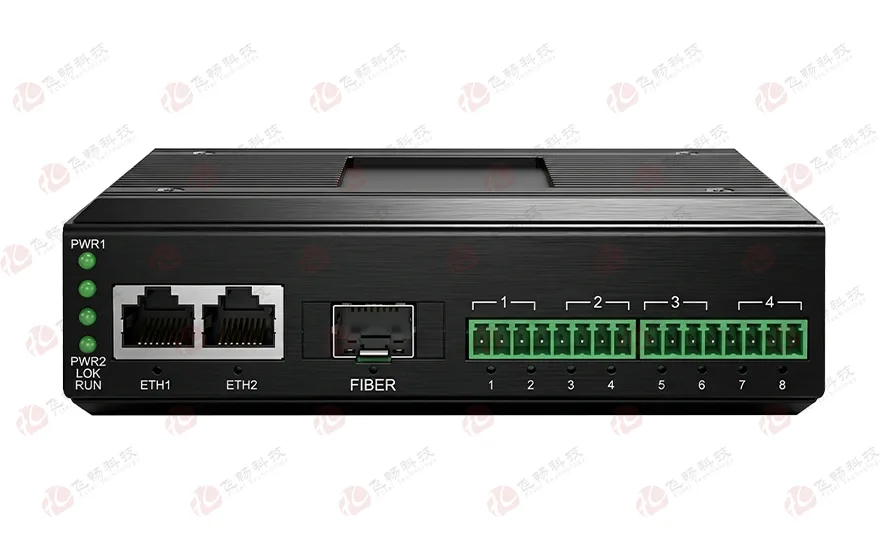

4 Port Serial Device Server | WEB and SNMP Management

This product is an industrial rail-type serial port server with IP40-rated, which is a serial port networking server that enables serial port devices to have networking capabilities immediately and can centrally manage scattered serial devices, hosts, etc. by the network. This product supports 1-4 channels of RS-232/RS-422/RS-485 to 1 channel of 100M Ethernet Comb port (providing 1 channel of 100M electrical port or 1 channel of 100M optical port), can use 35mm rail type and Wall-mounted installation to meet the needs of different application sites.

The serial port server supports a variety of network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP protocols; it has complete management functions, supports access control, quick configuration, online upgrade, etc.; each serial port supports 4-way TCP Or UDP session connection, support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes; support WEB access mode. In addition, the provided management and configuration tool based on the Windows platform can guide users to manage and configure the device step by step, and realize the immediate networking of serial devices through simple settings. The interface design of the network management system is friendly, the operation is simple and convenient, and it can bring you a good user experience.

The hardware adopts fanless, low power consumption, wide temperature, and wide voltage design. It has passed strict tests in line with industry standards and can adapt to industrial field environments with strict EMC requirements. It can be widely used in PLC control and management, building automation, and healthcare automation. systems, measuring instruments and environmental dynamic monitoring systems, etc.

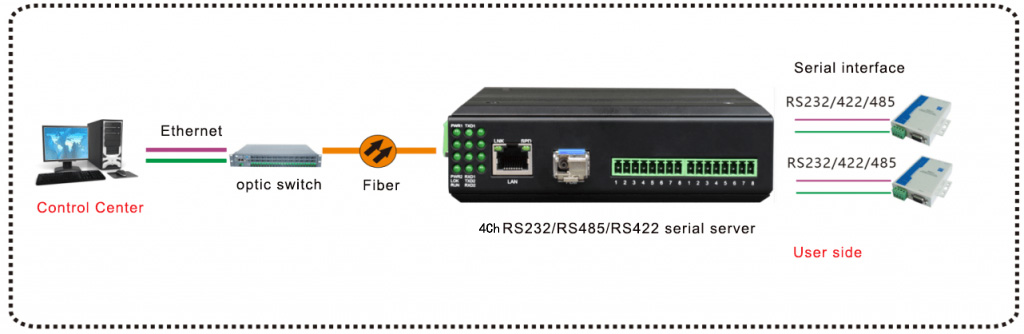

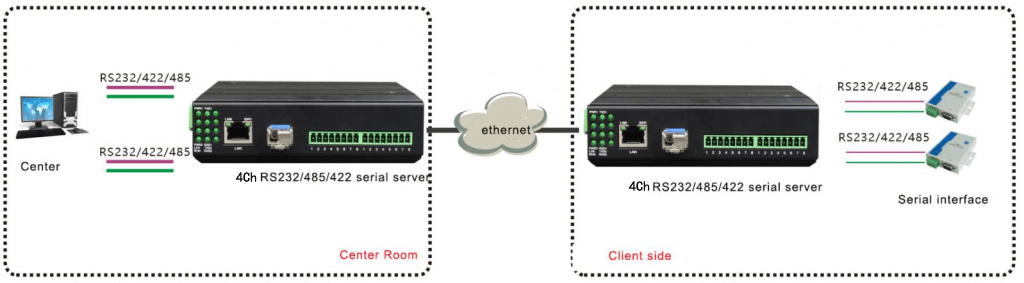

Can be used in many embedded network control applications:

– Industrial automation production

– Security access control: network access control, alarm equipment, infrared detection alarm, remote card reader

– Smart home equipment: smart home gateway, smart socket, smart switch

– Network IO Controller: Industrial Remote IO Input, Remote Relay Control

– Building intelligence and energy monitoring

– Medical monitoring equipment.

● Adopt ARM Cortex-M4, main frequency 192MHz processor;

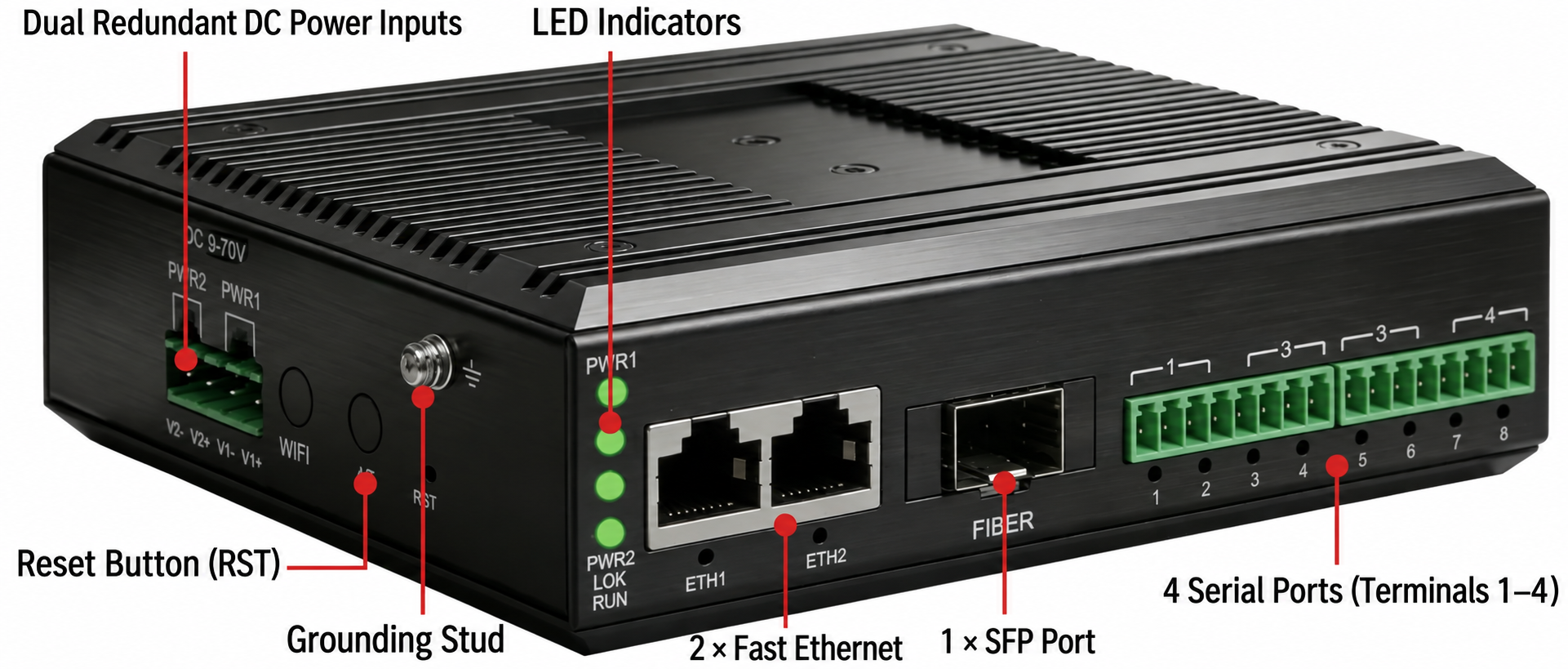

● Support 1 channel of FE Comb (provide1 channel of FE electric port or 1 channel of FE SFP optical port), support SFP optical module DDM management;

● Ethernet support 10/100Base-T(X) adaptive Ethernet interface;support Auto-Nego Full or half duplex), support automatically detects MDI/MDIX

● The serial port supports 300bps-921600bps line speed non-blocking communication, supports automatic scanning and matching of baud rate, and supports customer-defined baud rate ;

● The serial data interface complies with the relevant standards of RS-232/RS-485/RS-485. There are three kinds of interfaces, and different bus modes can be set by dialing codes;

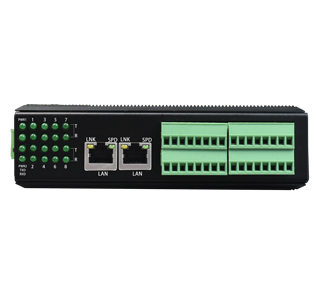

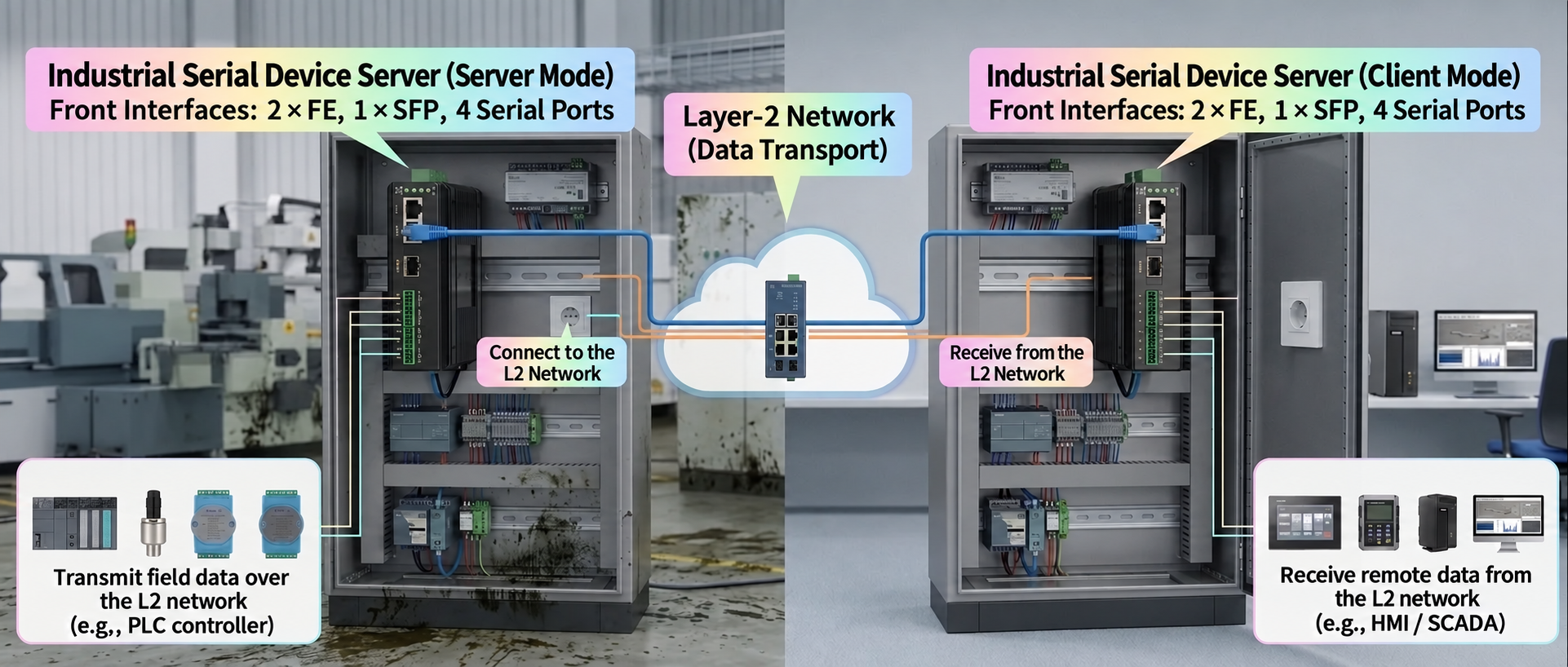

● Support various working modes like Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, etc.;

● Complete the transparent conversion from Modbus-RTU to Modbus-TCP, and realize the reading of serial device data through the network.

● Support the monitoring of serial port state and serial port parameter, which can show the state of communication;

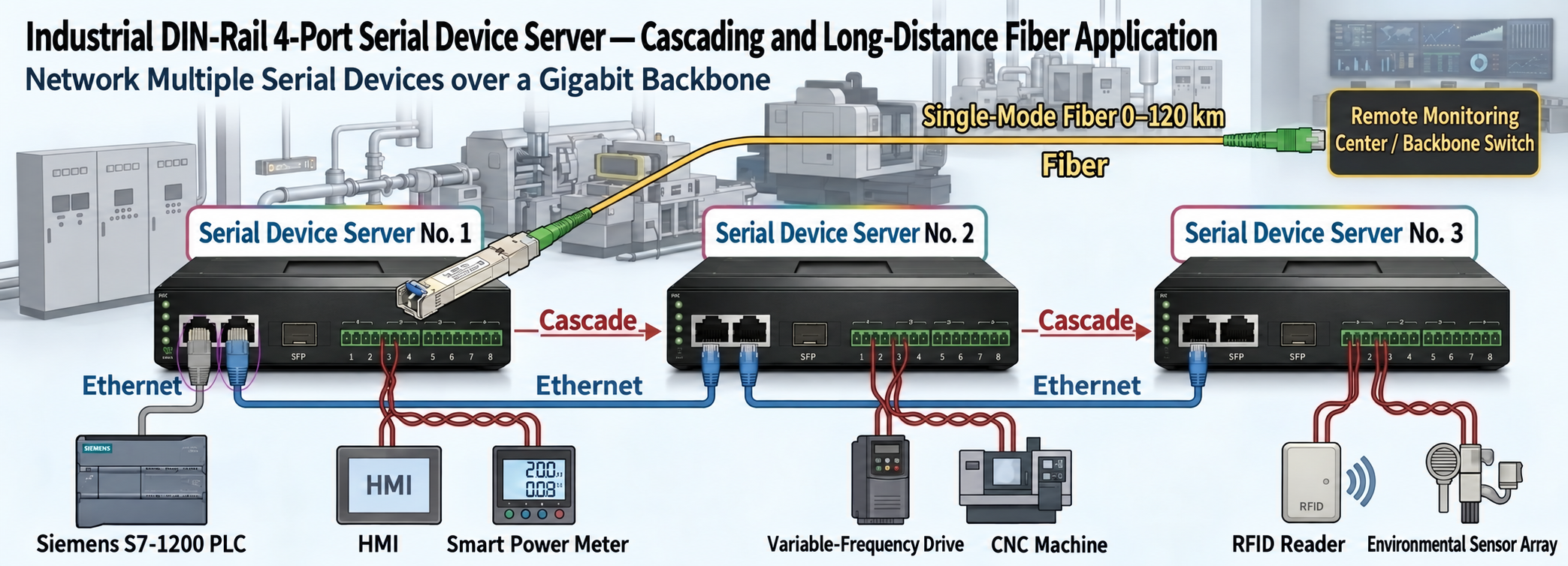

● Support cross-gateway and cross-route communication; support virtual serial port drive access mode and automatic connection recovery function after network interruption;

● Flexible serial data framing settings to meet various subcontracting needs of users;

● Support standard TCP/IP SOCKET application program access, TCP supports multiple connections, meeting the requirement of simultaneous monitoring or management of serial devices within 4 users;

● Support single or multi-machine communication under UDP mode to meet multiple users’ simultaneous monitoring or management of serial devices;

● Support Windows configuration tools, serial port and WEB, and other configuration forms, support SNMP network management;

● Support local and remote system firmware updates;

● Support wide range 9-55V DC and AC power input;

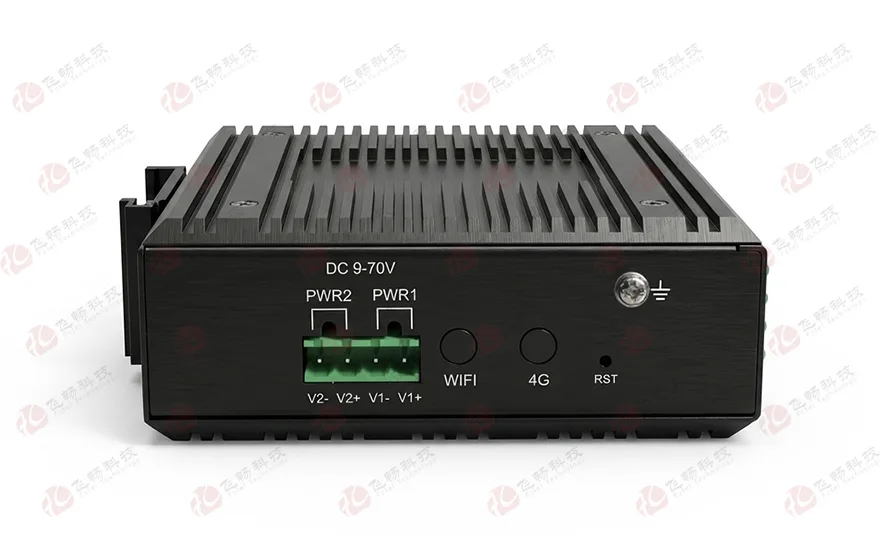

● Support internal isolation, redundant dual power input;

● The power support overload protection and anti-reverse connection protection;

● Meet the requirements of industrial 4-grade electromagnetic compatibility;

● Super anti-radar function: anti-lightning, anti-inductive high voltage, anti-surge, etc.;

● Highly efficient heat dissipation without the fan, reducing repairing time;

● Anode oxidation aluminum alloy shell, IP40 protection grade, which can withstand the test of harsh environments;

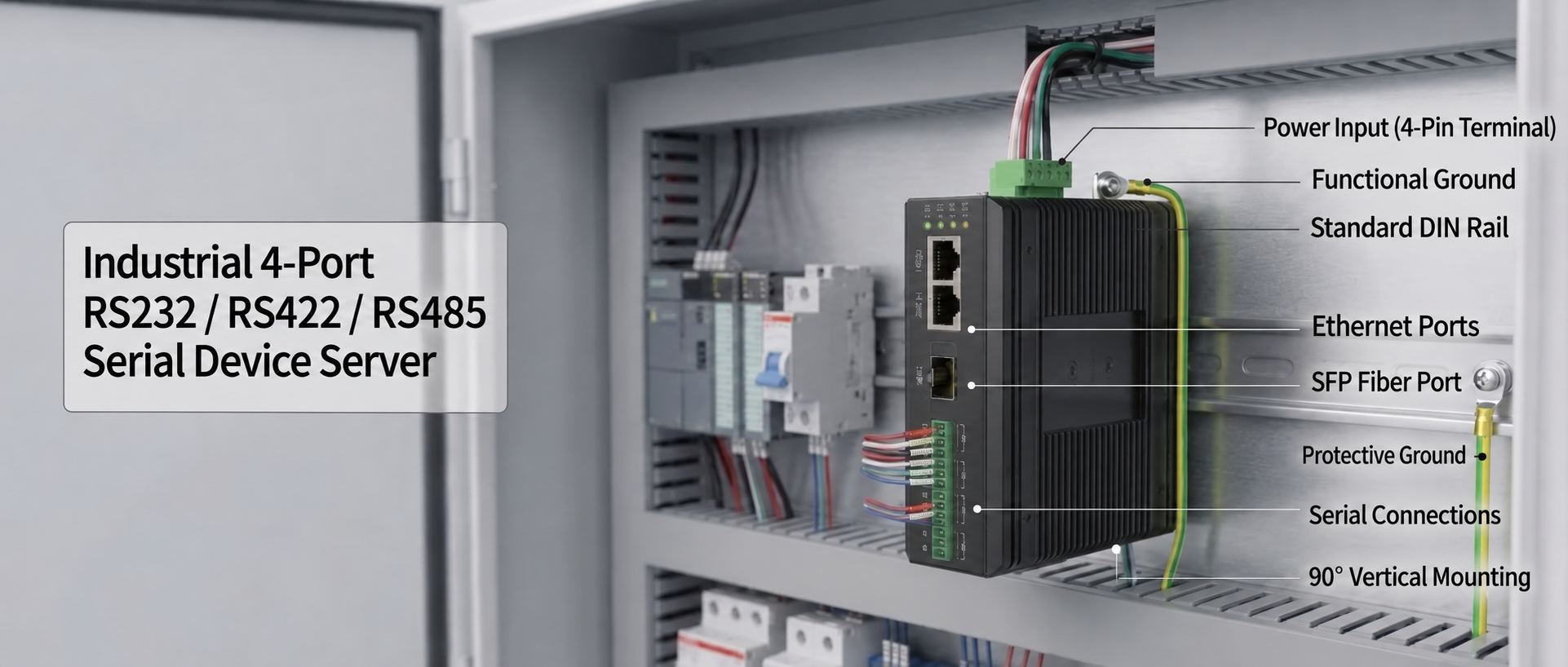

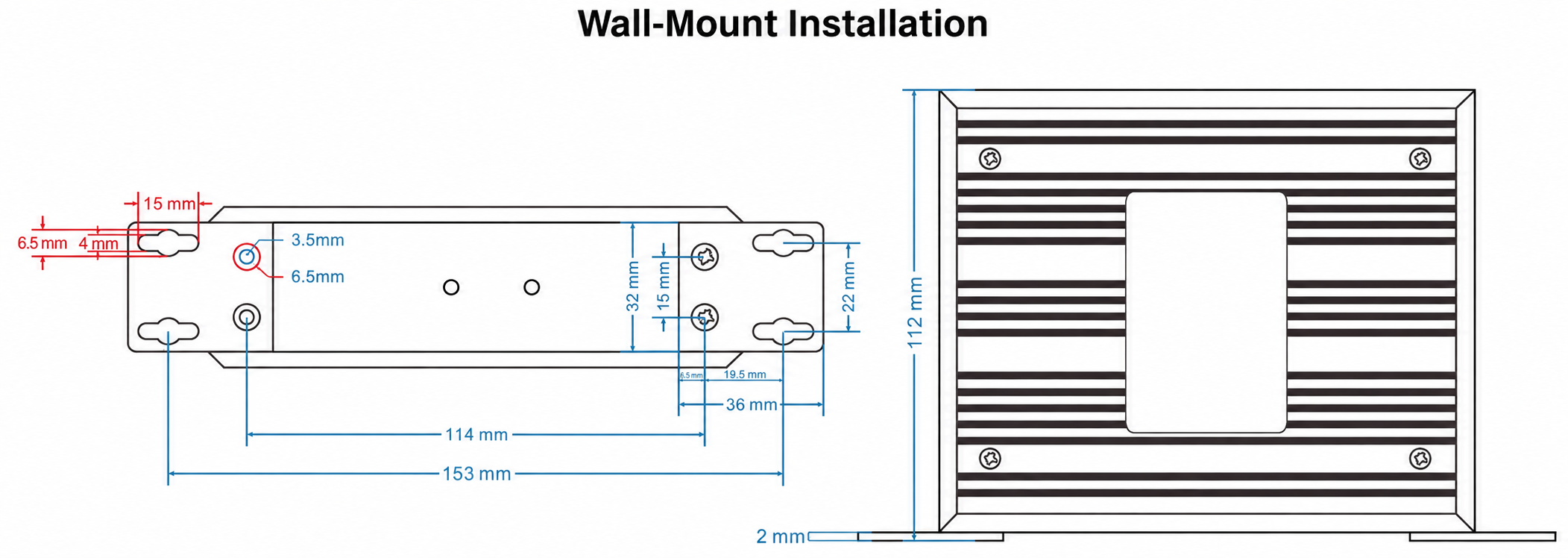

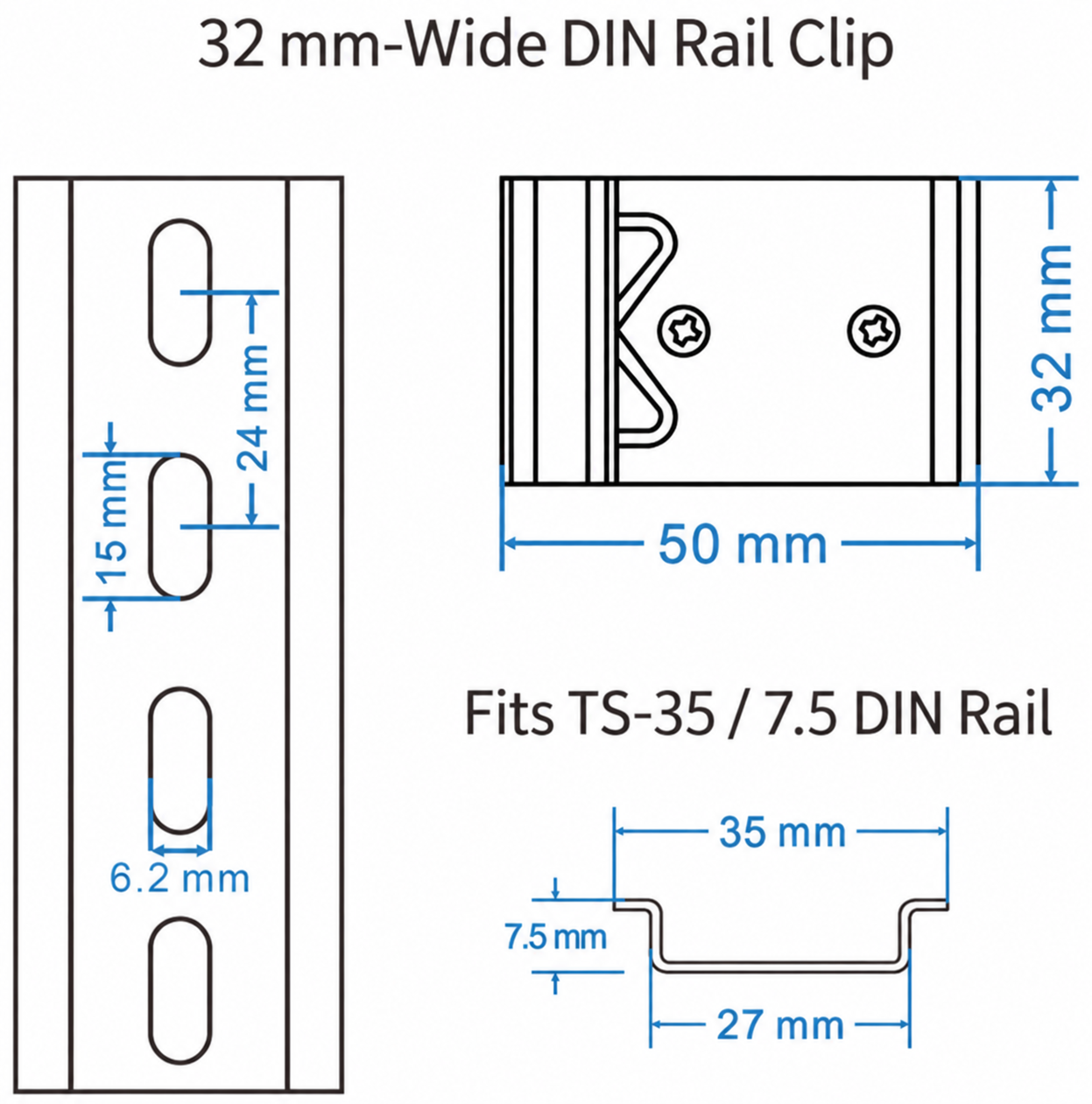

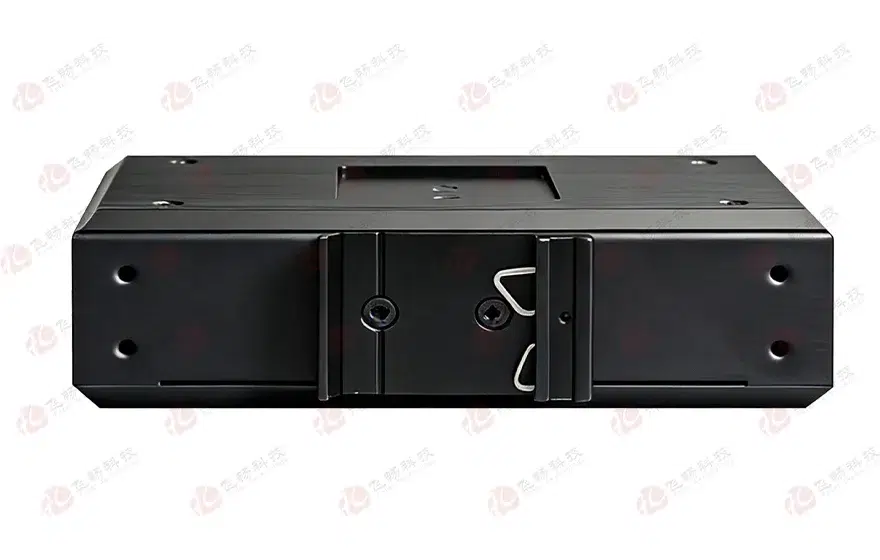

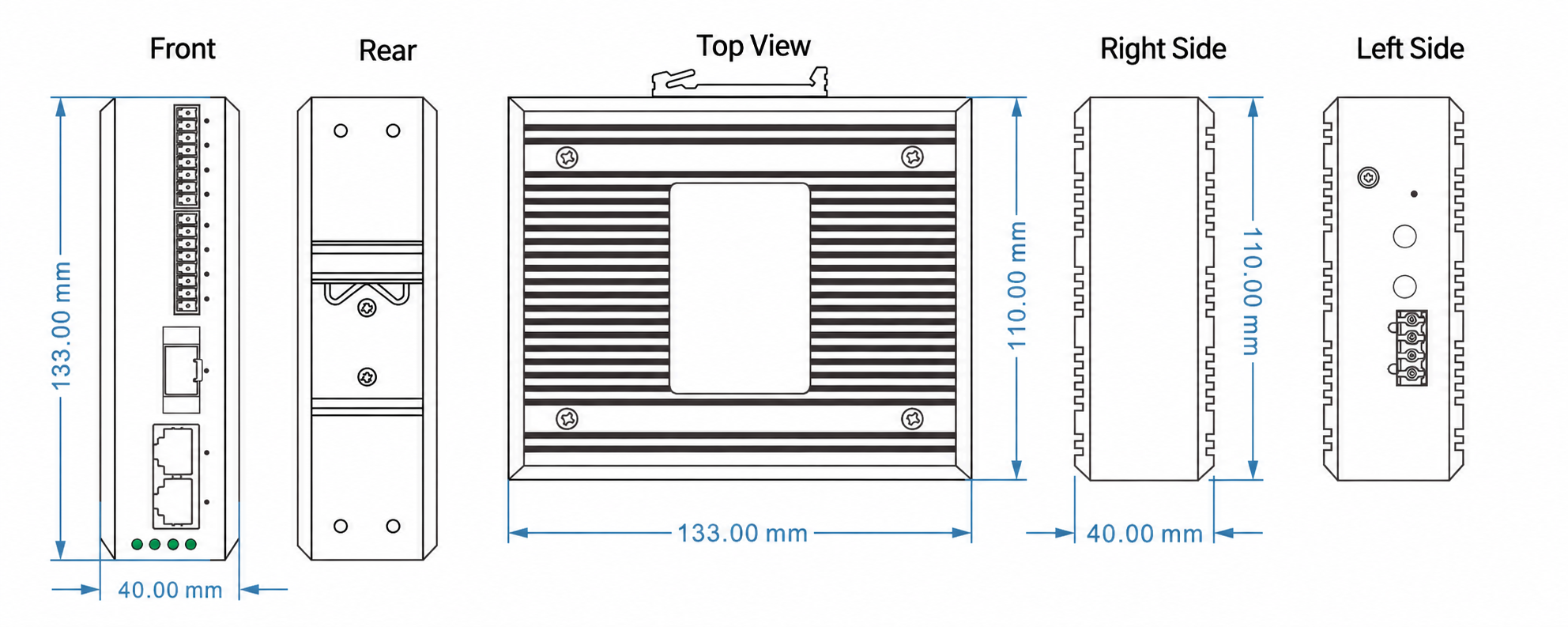

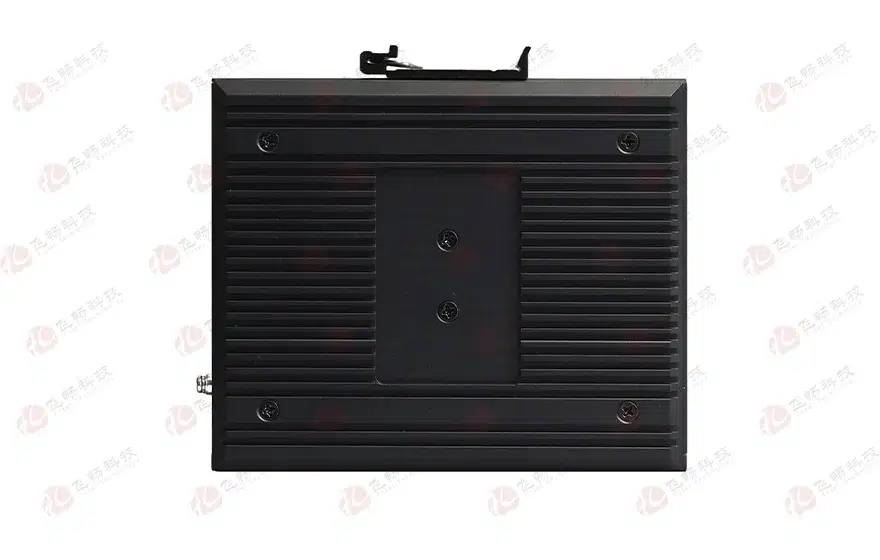

● Railed or wall-mounted installation;

● Wide-temperature type: operating temperature -40℃~+85℃;

● All models have passed the 100% burn-in test.

● 10/100M Ethernet Interface

Protocol: comply with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M adaptive, full duplex/half duplex adaptive

MAC Address Table Capacity: 4096 MAC addresses

Physical interface: RJ45, support Auto-MDIX

G.742 and G.823

● Serial interface

Standard

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD- GND

RS-485 4 wires: TxD+ TxD- RxD+ RxD- GND    RS-485 2 wires: A(corresponding TX+)   B(corresponding TX-) GND

RS-232: RXD TXD GND

● Environmental Indicators

Operating temperature: -40 ℃ – +80 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF:> 100,000 hours
