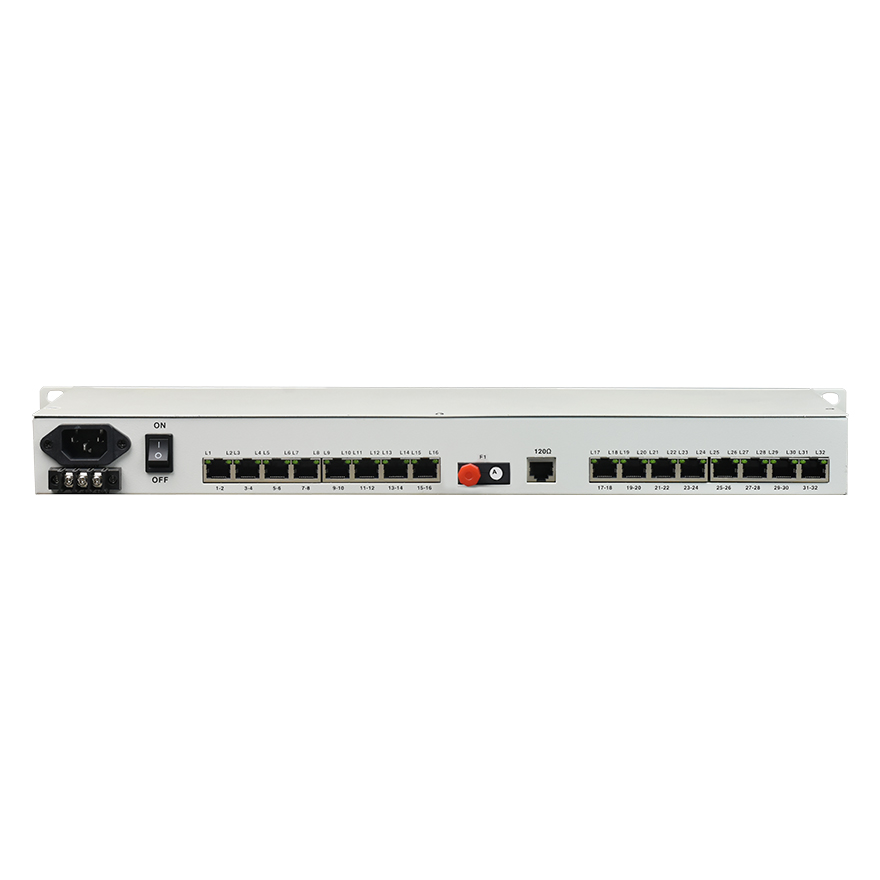

Dry Contact Optical Multiplexer (64Channel Unidirectional/32 Channel Bidirectional)

     The mini type 1-64*Dry contact output optical pure dry contact (alarm) optical transceiver.
      1-64 provides a 64*dry contact or 32*Bidirectional dry contact in optical fiber transmission, which solves the problem of electromagnetic interference, the interference and the lightning damage, improve the reliability of communication, data security and confidentiality, and can be widely used in various industrial control, process control and traffic control and other occasions, especially for banks electrical and electromagnetic interference to the environment, the special requirements of the Department and the system.

●Based on proprietary integrated circuit;
●Enter the normally open normally closed Dry contact automatically detects when the input what state Dry contact output that is why the state to facilitate the opening of the project;
●Dry contact turned on when not connected to other Dry contact or fiber state is stable, does not appear chaotic action status;
●Dry contact interface Lightning reach IEC61000-4-5 (8 /20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard;
●optional AC 220V, DC -48V, DC + 24V, DC power no positive and negative points;

 Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

Dry contact Interface

  Respond Time: <0.5ms
  Dry contact Signal: 30VDC/0.5A

  The maximum switching frequency 50HZ
  Physical interface: RJ45

  Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)
