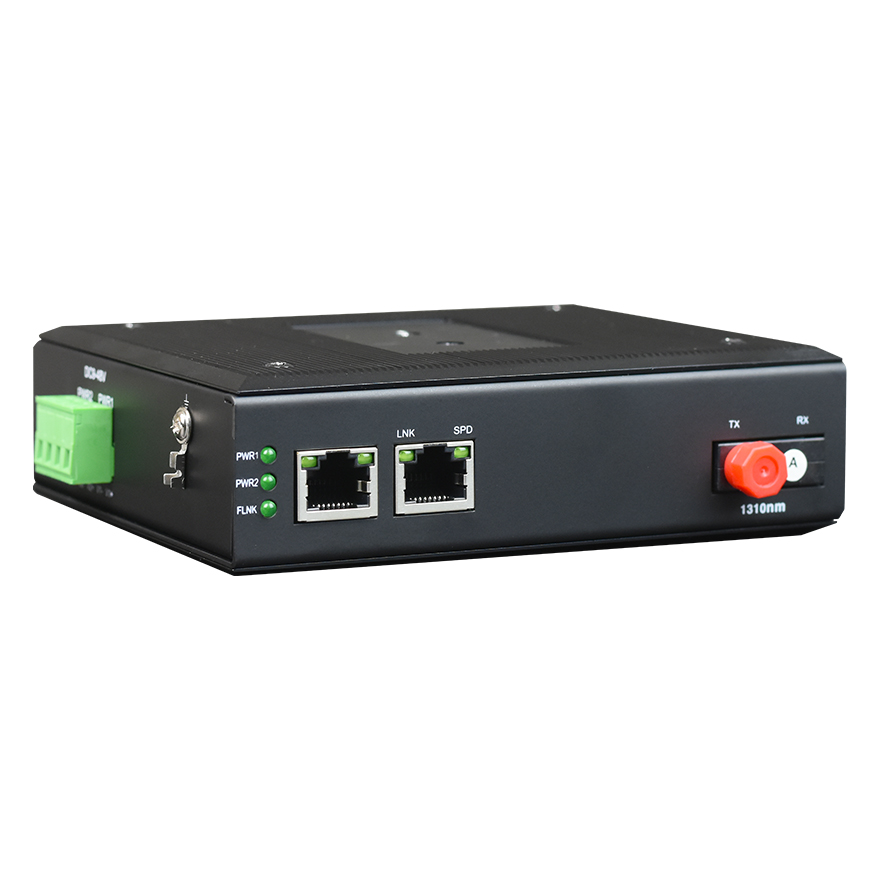

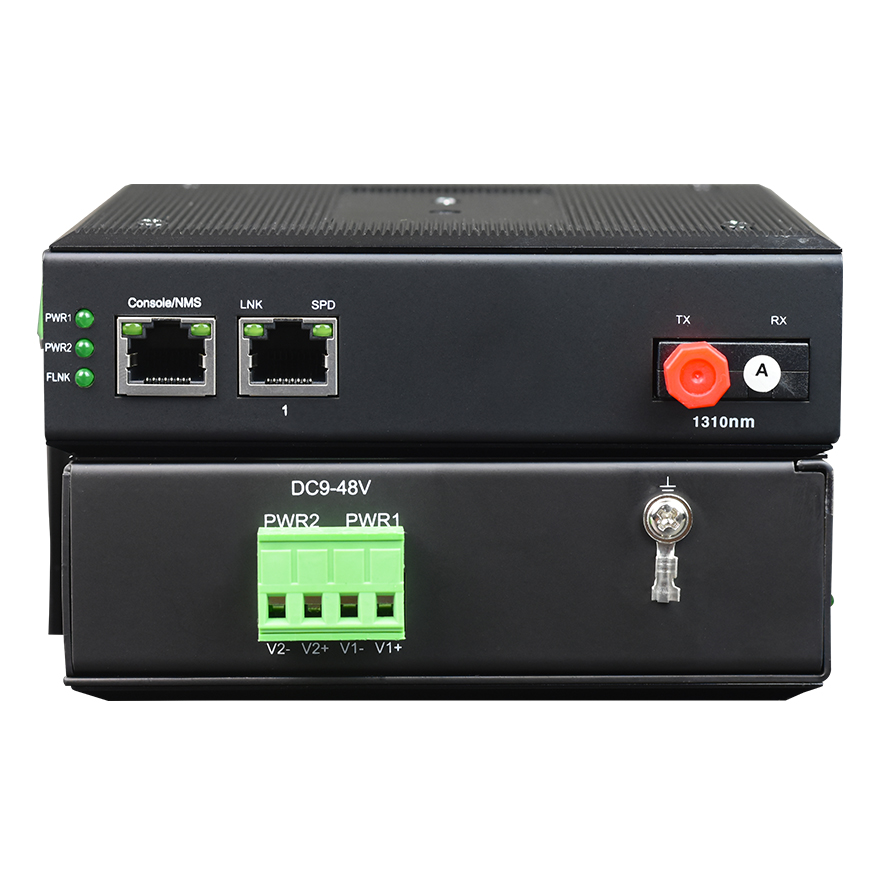

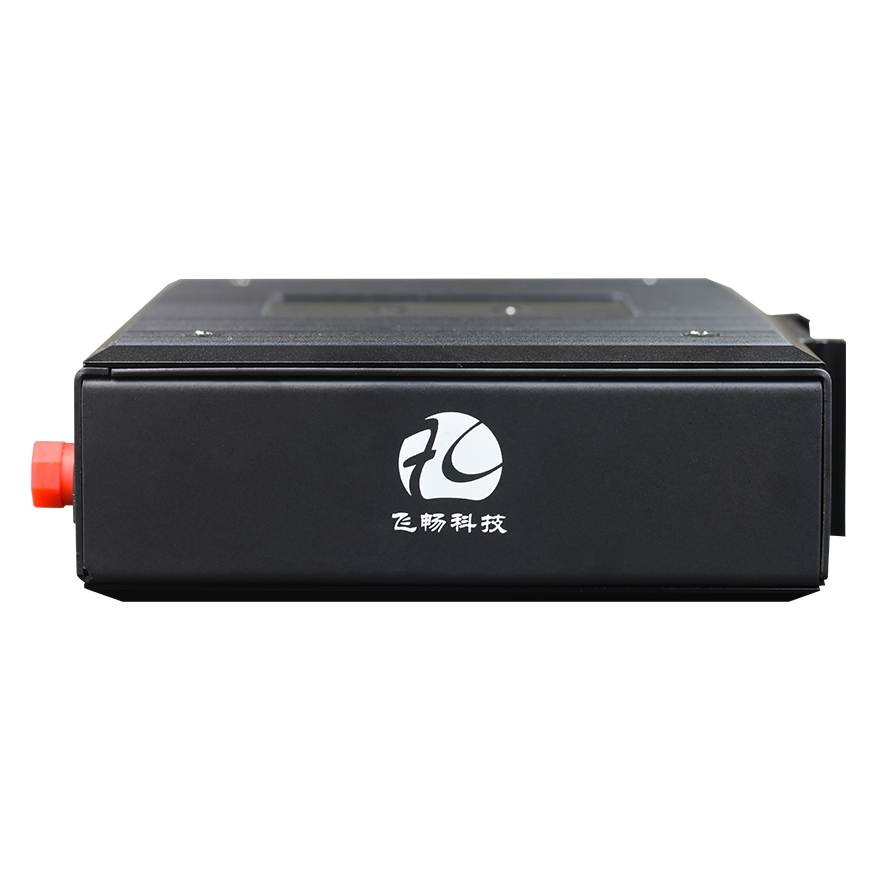

Industrial Managed 10/100M Fiber Optic Media Converter

This product is an industrial-grade fiber media converter used for converting or extending network transmission between 1 port of 10/100Base-T twisted pair and 1 port of 100Base-FX fiber optic media. It is mainly used for long-distance (20/40/60/80/120 kilometers) fiber network transmission. The product provides a 100 Mbps fiber port and a 100 Mbps Ethernet port. It has comprehensive alarm functions, stable and reliable operation, low power consumption, high integration, and a compact size.

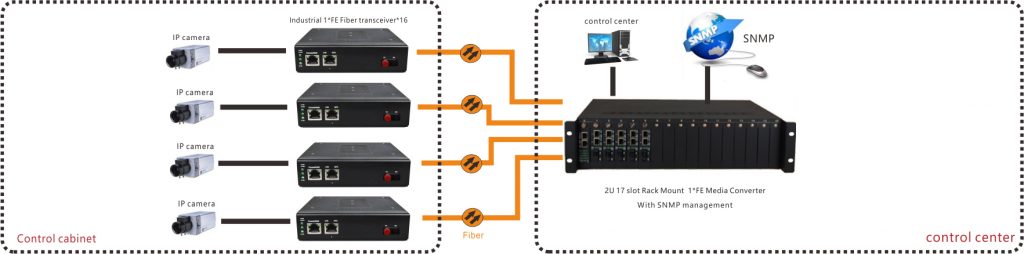

The media converter is based on an Ethernet switching chip + FPGA solution and includes a remote OAM frame management function. It supports Console network management, WEB network management, and independent SNMP network management. It can also be interconnected with a 2U plug-in card with SNMP network management for managing this device through SNMP software.

● The device is specifically designed for harsh industrial environments.

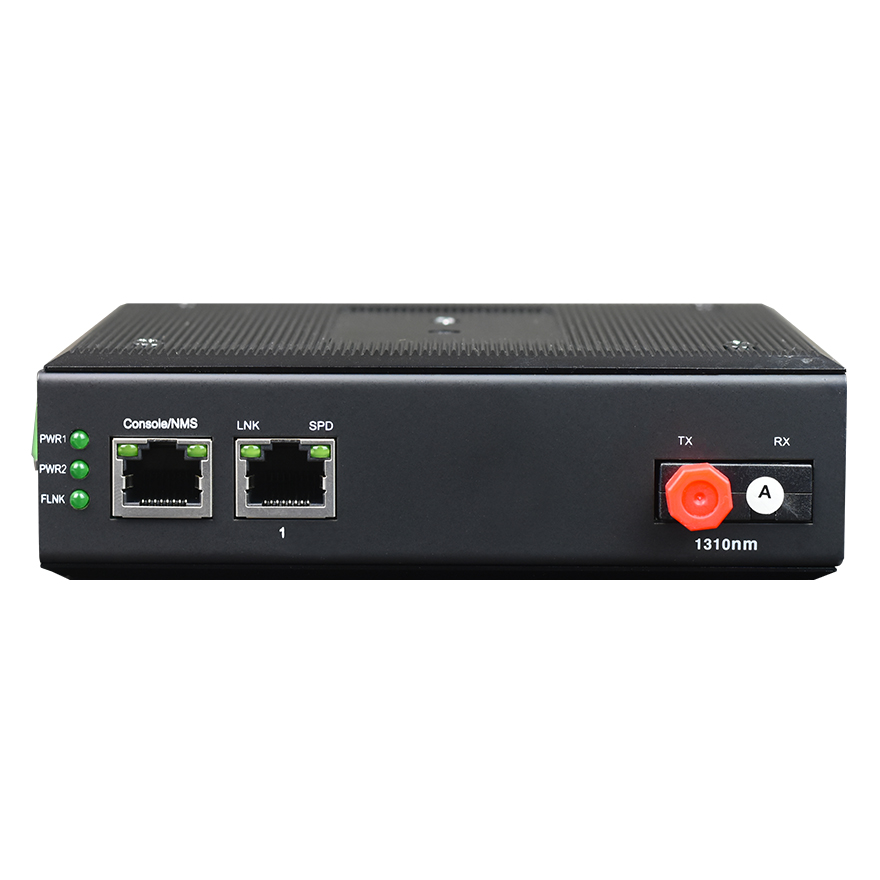

● It provides a 100 Mbps Ethernet port, a 100 Mbps fiber port, and an optional Console/SNMP network management port.

● The ethernet interface (RJ45) supports 10/100 Mbps auto-negotiation, full/half duplex, and MDI/MDI-X automatic detection.

● The fiber interface supports multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission modes, with optional SC/ST/FC/LC interfaces.

● The device incorporates various features such as broadcast storm protection, flow control, collision isolation, error detection, and automatic reset to ensure smooth transmission of high-volume data applications such as video transmission.

● The media converter is equipped with a built-in 1 Mbps high-speed cache, which prevents video lag during rapid changes in surveillance footage.

● It supports VLAN and can transmit jumbo frames up to 10,000 bytes, making it compatible with switches that support the IEEE 802.1Q protocol.

● The device utilizes an Ethernet switching chip + FPGA solution and includes a remote OAM management frame function. It can be interconnected with a 2U plug-in card with SNMP network management, allowing SNMP software to manage the device. It also supports Console (CLI) management, WEB management, and independent SNMP management.

● The network management feature enables real-time monitoring and management of the Ethernet interface status and settings for both the local and remote ends.

● The device includes power failure detection, which can identify if the remote device lost power or if there is a disruption in the fiber connection when the optical signal is lost.

● It supports a wide range of 9-55V AC and DC power inputs.

● The device offers internal isolation and redundant dual power inputs for enhanced power protection.

● It meets the industrial-grade electromagnetic compatibility requirements.

● It provides strong lightning protection, capable of withstanding lightning strikes, high voltage induction, surge protection, and more.

● It features a fanless design for efficient heat dissipation, reducing repair time.

● The device is housed in an anodized aluminum alloy enclosure with an IP40 protection rating, ensuring durability in challenging environments.

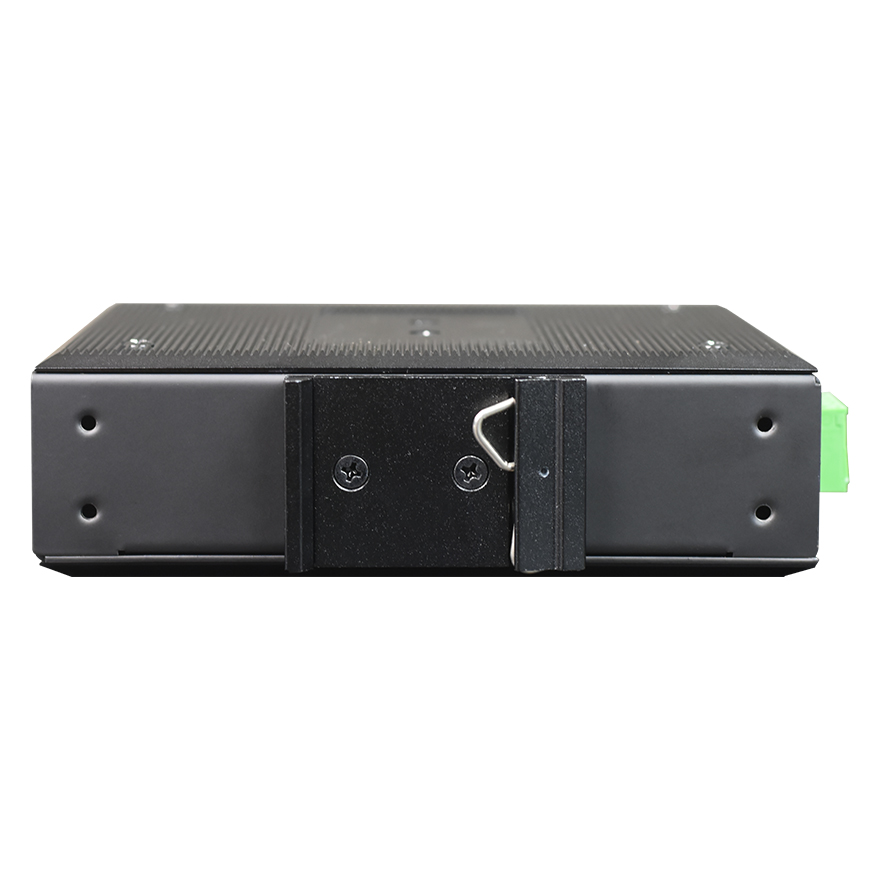

● It can be mounted on DIN rails or walls for flexible installation.

● The device operates reliably in a wide temperature range, from -40°C to +85°C.

● Fiber

Fiber Type: Single/Dual fiber

Fiber Interfaces: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)

Non-Relay Transmission Distance: 20-120Km

Typical Transmit Power:
– Single-mode 1310/1550nm: ≥-9dBm
– Multi-mode 850nm: -18dBm
– Multi-mode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm to -40dBm

● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3, IEEE 802.1Q (VLAN)

Rate: 10/100Mbps auto-negotiation, full/half duplex auto-adaptation

MAC Address Table: Supports learning of up to 4096 MAC addresses

Physical Interface: RJ45 connector, supports Auto-MDIX (auto cross-over/direct-through)

● Power Supply

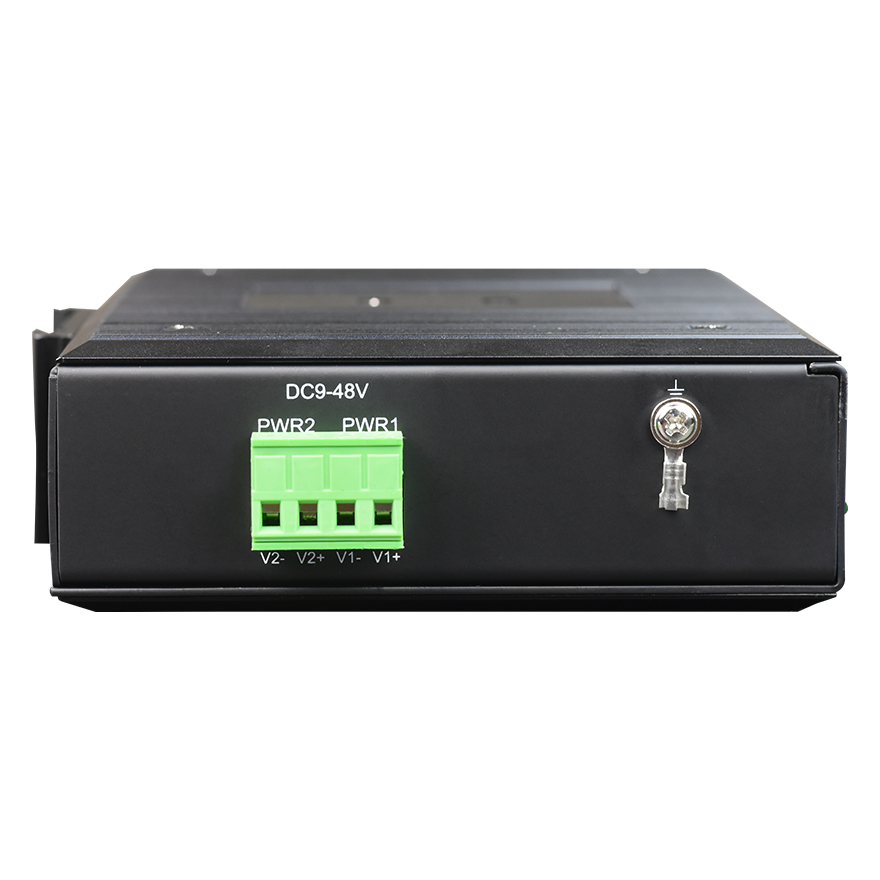

Redundant Dual Power Inputs: DC9-48V, power consumption <5W

Overload Protection: Supported

Reverse Connection Protection: Supported

Redundancy Protection: Supported

Terminal Connector: 4-pin 5.08mm pitch pluggable terminal

● Product Specifications

Enclosure: IP40 protection rating, made of aluminum alloy

Dimensions: 133mm (length) x 120mm (width) x 31.0mm (height)

Installation: DIN rail or wall-mount installation

Weight: 0.685kg per unit

● Environmental Index

Operating Temperature: -40°C to +85°C (industrial-grade)

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours
