Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch
Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch

Managed DIN-Rail 4-Port 10/100M Ethernet + 4-Port 100M Optical + 2-Port 1000M SFP Industrial Switch

View : 719
Type : Managed Din Rail Industrial Switch
Description :

The switch provides 2 gigabit SFP optical ports, and 4 100Mbps Ethernet interfaces.

Overview

The switch provides 2 gigabit SFP optical ports, and 4 100Mbps Ethernet interfaces. It adopts an industrial redundant ring network design, with 2 fiber optic ports for each device used to form a ring network topology through a cascading method. The FC-Ring design is intended to achieve stability, reliability, and real-time data transmission in harsh environments. Its working principle is to physically connect in a ring structure, and the network signal forms a chain structure during operation. Once a node in the transmission optical cable is broken, the device automatically switches to the backup line for transmission in a very short time. The redundant ring structure not only reduces the risk of data signal transmission but also simplifies engineering installation and reduces engineering costs.


Features

● This device features an industrial rail-mounted design, specifically engineered for harsh industrial environments.

● It provides 2 fiber optic paths that can automatically switch to ensure communication is maintained in the event of a line failure.

● It supports multiple fiber optic network structures, including point-to-point, star, chain, and redundant ring, and can be combined to form more complex network topologies.

● The device can automatically shut down and restart in the event of a system crash.

● It provides 4 100Mbps Ethernet interfaces, 4 100Mbps optical interfaces, and 2 Gigabit optical interfaces, giving the network a total transmission bandwidth of 1000Mbps.

● It has a built-in 1Mbit MP-SSRAM high-speed cache with a non-blocking design and a maximum backplane bandwidth of 32GBit/S.

● Based on FPGA+ARM architecture, the device can quickly establish a self-healing ring network, supporting FC-Ring redundant ring networks with a self-healing time of less than 20ms.

● It supports the transmission of VLAN frames with an extended data packet size of up to 10K bytes, and can be used with switches that support the IEEE802.1Q protocol.

● It also features functions such as broadcast storm protection, flow balance, conflict isolation, and error detection.

● The 10/100Mbps interfaces are fully adaptive, with automatic MDI/MDI-X adjustment.

● The Ethernet interfaces are equipped with lightning protection, and can withstand short circuit current waves of 8/20μs and open circuit peak output voltage of 6KV according to GB/T17626.5(IEC61000-4-5) standards.

● The switch comes with a Console (CLI) network management and WEB management platform, allowing for online software upgrades. The host can also manage the operational status of each slave device.

● It supports a wide range of DC inputs (9V-48V), with internal isolation and redundant dual power inputs that support overload protection and reverse connection protection.

● It features strong lightning protection capabilities, is resistant to lightning strikes, can withstand induction high voltage, and can prevent surges. It has efficient fanless cooling, reducing repair time.

● The anodized aluminum alloy housing has an IP40 protection level and can withstand the test of harsh environments.

● It can be installed on a rail or wall.

● Working temperature -40°C to +85°C.


Parameters

● Fiber

Fiber: Single/Dual Fiber

Fiber Interface: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm (Multi-mode); 1310nm/1550nm (Single-mode)

Non-repeating Transmission Distance: 20~120km

Typical Transmission Power:

Single-mode 1310/1550nm: ≥-9dBm

Multi-mode 850nm: -18dBm

Multi-mode 1310nm: -25dBm

Receiving Sensitivity Range: -28dBm~-40dBm



● 10/100M Ethernet Interface:

Protocol: Compliant with IEEE 802.3, IEEE 802.1Q (VLAN)

Rate: 10/100M adaptive, full/half duplex fully adaptive

MAC Address Table: Can learn 4096 MAC addresses

Physical Interface: RJ45 socket, supports Auto-MDIX



● Environmental Indicators:

Operating temperature: -40°C—+85°C (industrial grade)

Storage temperature: -40°C—+85°C

Operating humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Application

Application 1: Point to Point

Application 2: Line

Application 3: Star

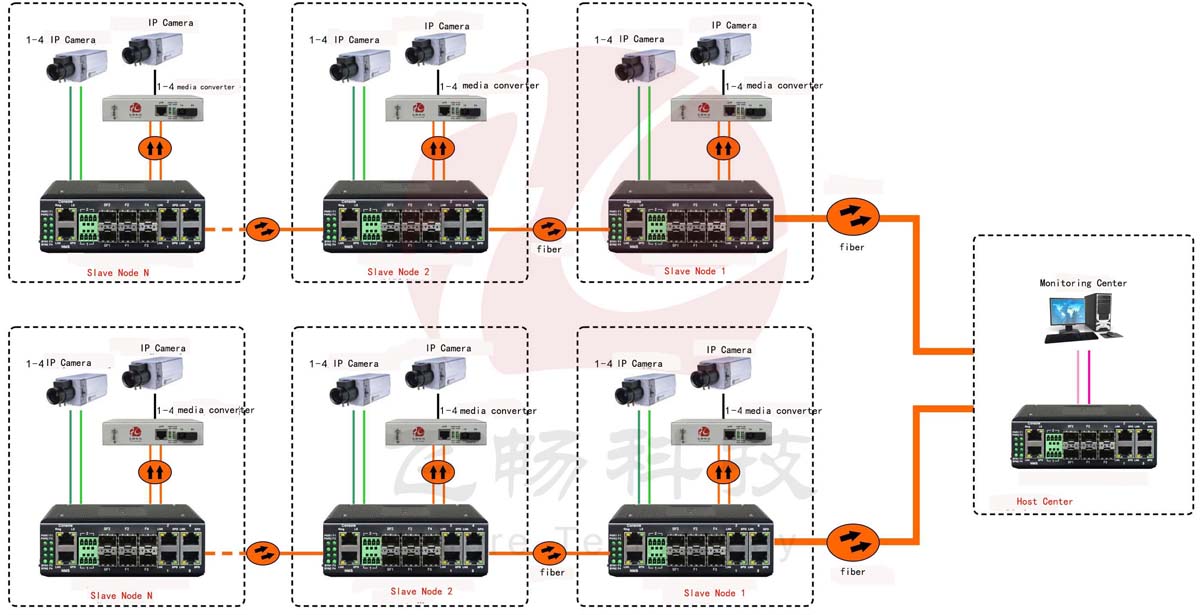

Application 4: Ring
